Corel PHOTO-PAINT Help | Work with vector graphics

Work with vector graphics

In Corel PHOTO-PAINT, you work with bitmaps, also called raster images. Bitmaps are composed of tiny squares called pixels; each pixel is mapped to a location in an image, and has numerical color values. The location and color value data is stored as bits — hence the name bitmaps.

Vector graphics are made up of lines, curves, objects, and fills that are all calculated mathematically. Although you cannot work with vector graphics in Corel PHOTO-PAINT, you can convert vector graphics to bitmaps as you open or import them. This conversion process is called rasterization. You can also copy vector graphics from CorelDRAW and paste them into Corel PHOTO-PAINT.

Vector graphics usually have a smaller file size than bitmaps, so expect file size to increase when you convert vector graphics to bitmaps.

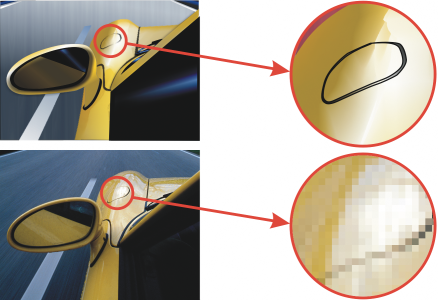

The top illustration is a vector graphic consisting of lines, objects, and fills. The bottom version is a bitmap made up of pixels.

To open a vector graphic

1 Click File

Open.

2 Choose the folder where the file is stored.

3 From the Files of type list box, choose the vector file format of the file you want to import.

4 Click the filename.

5 Click Open.

6 In the Convert to bitmap dialog box, specify the settings you want.

You can copy a vector graphic in CorelDRAW and paste it into Corel PHOTO-PAINT by clicking File New from clipboard.

To import a vector graphic

1 Click File

Import.

You can also click the Import button

on the toolbar.

2 Choose the folder where the file is stored.

3 From the Files of type list box, choose the vector file format of the file you want to import.

4 Click the filename.

5 Click Import.

6 Click in the image window.

7 In the Convert to bitmap dialog box, specify the settings you want.

You can copy a vector graphic in CorelDRAW and paste it into Corel PHOTO-PAINT by clicking File New from clipboard.
