Creating seamless patterns

Patterns are created by repeating a rectangular image tile across an area. Ideally, the pattern tiles should seamlessly blend into one another so that the eye doesn’t distinguish the tile edges. Corel Painter allows you to generate seamless patterns by modifying the edges of a pattern tile before applying the pattern. However, you can also fix a pattern’s seams by directly modifying the pattern fill.

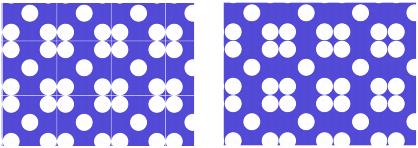

Left: The pattern tile includes a visible white edge, which delimits each tile. Right: The white edge was filled with the background color to produce a seamless pattern.

To achieve seamless tiling, Corel Painter gives documents defined as pattern tiles two special characteristics: wrap-around colors and wrap-around seams.

•

The wrap-around colors feature lets you drag a brushstroke off one edge of an image, while simultaneously applying the stroke to the other side of the image. This allows you to quickly modify the edges of an individual pattern tile.

•

The wrap-around seams feature lets you shift the edges of pattern tiles to the center of the image, where their tonal differences are more apparent and easier to correct. This allows you to modify a pattern after applying it as a fill.

Left: The pattern tile before the edges were modified. Right: The same pattern tile after the edges were painted by using the Straight Cloner brush and the wrap-around colors feature.

To ensure a seamless pattern, you can also apply an effect, such as the Glass Distortion effect, the Super Soften effect (with the Wrap Around check box enabled), and most of the Tonal Control effects. Some effects, such as Apply Surface Texture, can result in a noticeable seam. For information, see Applying Glass Distortion.

To create a seamless pattern from a pattern tile

Choose Window

Media Control Panels

Patterns.

Click the Pattern selector, and click the pattern whose tile you want to fix from the Patterns library panel.

Click the Pattern options button

, and choose Check Out Pattern.

The pattern tile appears in a separate document window.

Use any color brush to paint out the edge lines, or use a brush with a Water or Drip method to smear across the lines.

Click the Pattern options button

, and choose Capture Pattern.

In the Capture Pattern dialog box, type a name in the Name box.

To preserve detailed images, set the Straight Cloner brush to clone from somewhere inside the image. For more information, see Painting in the clone.

You can also copy a selection to a layer and move it over the edge. To produce clean transitions, feather the layer, and reduce opacity. Drop the layer when you’re satisfied with the result. For more information, see Layers.

To create a seamless pattern from a pattern fill

Open a new blank document.

Choose Window

Media Control Panels

Patterns.

In the Patterns panel, click the Pattern selector, and click the pattern whose seams you want to modify in the Patterns library panel.

Click Canvas in the Layers panel.

Choose the Paint Bucket tool

from the toolbox, and click the canvas in the document window.

In the Patterns panel, click the Pattern options button

, and choose Define Pattern.

In the toolbox, click the Grabber tool

Hold down the Shift key and drag the image to display the area where the tile’s horizontal and vertical edges meet.

Do any of the following:

•

Use any color brush to paint out the edge lines, or use a brush with a Water or Drip method to smear across the lines.

•

Use the Straight Cloner brush to paint out the edge lines to preserve image details. For more information, see Painting in the clone.

The changes that you make to a pattern fill are not reflected in the original pattern tile.
