The Circular Distortion tool creates circular rings of distortion. Drag in the direction you want the distortion to move. Size and Spacing have no effect on the Circular Distortion tool.
| • | To create a Liquid Lens dynamic layer |
| • | To erase Liquid Lens distortion |
Liquid Lens creates a dynamic layer that lets you distort and smear the underlying image. You can create "fun house" mirror effects, melting images, and more. You can also erase any of the changes that you make.
You can apply different distortion effects by using any of the following tools:
|
The Circular Distortion tool creates circular rings of distortion. Drag in the direction you want the distortion to move. Size and Spacing have no effect on the Circular Distortion tool.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| To create a Liquid Lens dynamic layer |
|
| 1 | In the Layers panel, choose the Canvas. |
| 2 | Click the Dynamic Plug-ins button  , and choose Liquid Lens. |
| 3 | In the Liquid Lens dialog box, choose a Liquid lens tool. |
| 4 | Adjust any of the following sliders: |
| • | Size — changes the diameter of the distortion tool and the size of rain, which scatters distortion droplets in the layer |

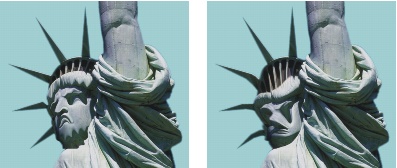

Examples of how the Size slider affects distortion.
| • | Spacing — changes the distance between distortion dabs |
| • | Amount — controls the degree of distortion applied |
| • | Smooth — changes the blending between the distortion stroke and the unaffected images |
| 5 | Drag in the document window to create distortion. |
| If you don’t like the distortion, click Clear. |
|
In the Liquid Lens dialog box, click Rain, then click anywhere in the image to stop the rain.
If Smooth and Size settings are very high, the rain might continue for a moment after you click.
|
|
|
Click the Reset button.
|
You cannot use Undo to restore the image to its previous state, however, you can use the Eraser tool in the Liquid Lens dialog box.
You can move the Liquid Lens layer to different regions of the document to distort other images.
Rain melts the image.
| To erase Liquid Lens distortion |
|
| 1 | In the Liquid Lens dialog box, choose the Eraser tool  . |
| 2 | Adjust the Size, Spacing, and Smooth sliders to modify the Eraser tool settings. |
| Higher settings on the Smooth slider create softer transitions from the erased area to the remaining distortion. |
| 3 | Drag in the document window. |
| The original underlying image returns. |
Remove distortion by using the Eraser tool.
