Selecting and viewing channels

You can select and view all alpha channels that are stored in the active document from the Channels panel. Selecting and viewing a channel are distinct operations — you can view a channel without selecting it, and you can select a channel without viewing it. If you want to edit a particular channel, you must select it.

Chanel panel

You can view or hide a channel by clicking the eye icon next to the channel’s thumbnail in the Channels panel. When the eye is open (1), the channel displays in the document window. When the eye is closed (2), the channel is hidden.

The Channels panel also lists the RGB color image. In addition, if a layer is selected, and the layer has a layer mask, the Channels panel also lists the layer mask. For more information, see Creating and deleting layer masks.

channel layer masks RGB color image

The Channels panel displays the RGB color image (1) and the Layer Masks of selected layers (2).

You can view the RGB image and more than one channel, but your editing applies only to the one item selected in the Channels panel — either the RGB image or a channel.

RGB channel

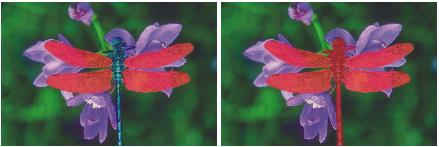

Left: The "wings" channel and the RGB image are displayed. Right: The "wings" and "body" channels are displayed as red overlays on the RGB image. The eye icons for both channels and for RGB are open.

Corel Painter offers two ways to view a channel — as a colored overlay on the image or in grayscale. Colored overlays are red by default, but you can change the color. For more information, see To set channel attributes.

To display the channels panel Back to Top
To select a channel Back to Top

*

When you want to work on the image again, choose RGB from the list.

To view or hide a channel Back to Top





To
Do the following
View a channel as a colored overlay
In the Channels panel, click the eye icon next to the channel’s thumbnail. In this mode, the RGB image is always displayed.
View a channel as a grayscale image
In the Channels panel, make sure the channel is hidden (eye closed ) and not selected, and click the channel name. In this mode, the RGB image is hidden.
Hide a channel
Click the eye icon next to the channel item to close the eye .

hiding RGB channel

A channel protecting the wings and body is displayed in grayscale. The RGB image is hidden.
