With Corel DESIGNER, you can add a table to a drawing to create a structured layout for text and images. You can draw a table, or you can create a table from existing text.

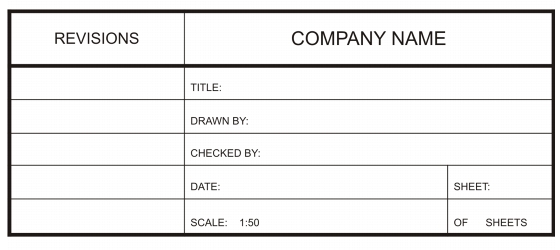

In this example, a table was used to create the title block of a drawing.
| To add a table to a drawing |  |
1. |
Click the Table tool
 .
|
2. |
Type values in the Rows and columns boxes on the property bar.
|
The value that you type in the top portion specifies the number of rows; the value that you type in the bottom portion specifies the number of columns. |
3. |
Drag diagonally to draw the table.
|
 |
You can also create a table by clicking Table  Create new table, and then
typing values in the Number of rows, Number of columns, Height, and
Width boxes.
|
| To create a table from text | |
1. |
Click the Pick tool
 .
|
2. |
Select the text that you want to convert to a table.
|
3. |
Click Table Convert text to table.
|
4. |
In the Create columns based on the following separator area, choose one of the
following options:
|
• |
Commas — creates a column where a comma appears and a row where a
paragraph marker appears
|
• |
Tabs — creates a column where a tab appears and a row where a paragraph
marker appears
|
• |
Paragraphs — creates a column where a paragraph marker appears
|
• |
User defined — creates a column where a specified marker appears and a row
where a paragraph marker appears
|
If you enable the User defined option, you must type a character in the User defined box. |
 |
If you do not type a character in the User defined box, only one column is
created, and each paragraph of text creates a table row.
|
You can also convert a table to text. For more information, see To convert a
table to text.
|
|
